Easy DIY Projects: How to Build a Portable Cutoff Bin

Author Chigwell Building & Joinery

Date 18/01/2017

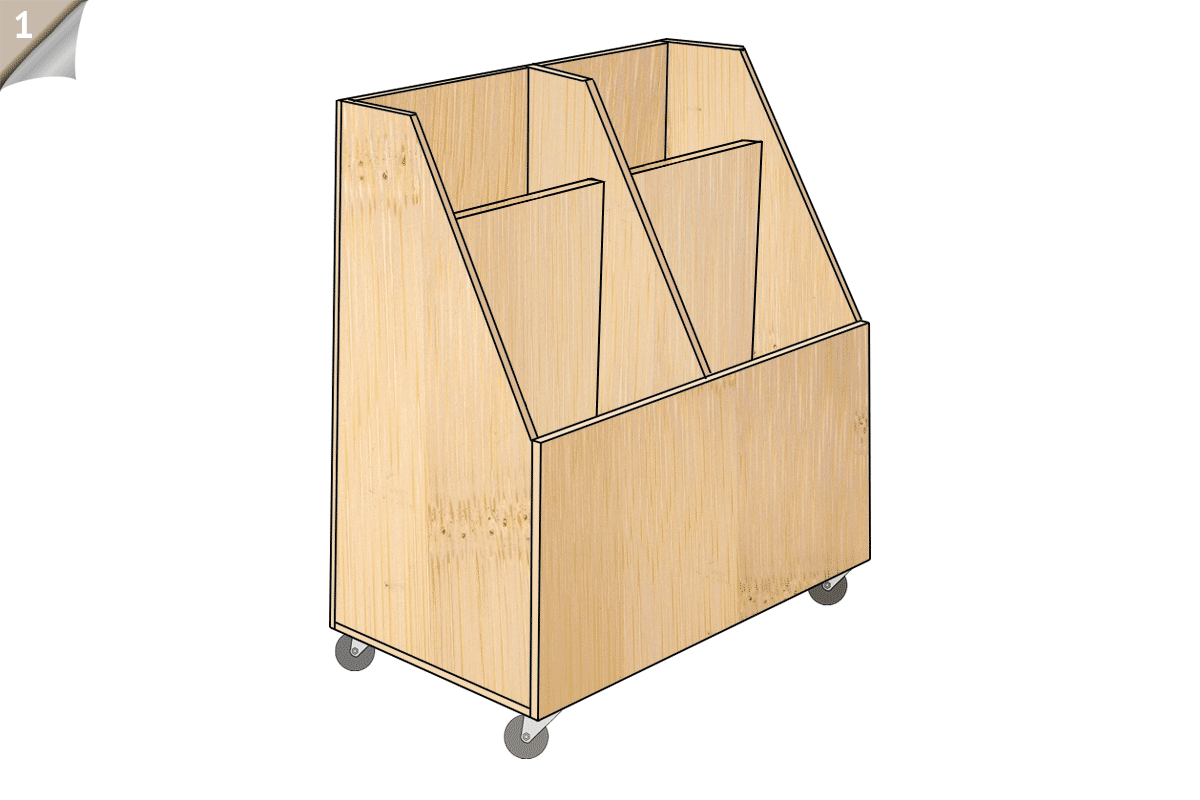

A simple step-by-step guide to making a great storage unit for wood cut offs

Most DIY enthusiasts who regularly make home projects or repairs will start to build a collection of timber cut offs and pieces that they are loathed to part with. Wood is expensive and there’s always a small job that may require just a tiny piece of timber to complete it, so why throw away cut offs when they can be so useful? A pile of loose wood cut offs can start to clutter up a corner of your shed or garage and this becomes a nuisance, not to mention messy. So why not build a simple, portable cut off bin to store them all?

This simple home project is the perfect answer to organising your timber pieces and takes just minimal materials and time to complete. Any novice DIY enthusiast should be able to make this with little difficulty. So let's get started and find out how you can make your own portal timber bin in under one hour!

Materials

Firstly, you'll need a full 2440 x 1220mm (8" x 4") sheet of 18mm deep plywood or MDF. Either is good however, plywood is the better option as it tends to be stronger and will hold together better, not to mention resist moisture for longer, assuming it will be stored outside in your shed or garage)

You'll also need 4 casters (wheels) to make your bin portable, 4 corner L-brackets (or similar), a box of 1" self-tapping wood screws, a circular saw (or hand saw), an electric drill and 2mm wood drill bit.

Cutting List

Firstly, let’s cut out all the pieces you’ll need to make your bin. All of the shapes use straight edges, so there’s no complicated cutting involved, making this project really easy!

By following Figure 2 as shown, you will need to cut three pieces for the bin’s 2 sides and centre panel labelled (D) measuring 794mm long by 394mm wide. To achieve the angles on these panels, measure and mark your cut piece with a pencil at 152mm from the edge along the short side and then mark 375mm from the edge along the long side. Then using a long straight piece of timber or ruler, draw a diagonal line connecting the two marks you have just made. Then with a hand saw (or electric saw) cut along the line to complete your first piece.

Give is a light sanding to remove any rough edges or splinters and then use this piece as a template to mark out and cut two further pieces at exactly the same size. Once done, you should now have three "D" panels.

Next cut 2 pieces measuring 812mm long by 394mm wide, which will be used as both your "A" and "C" panels which have exactly the same dimensions. One will be used as the bin’s front panel whilst the other will be the base panel.

Next, cut your "B" piece, which will be your bin’s back panel at 812mm long by 812mm wide. This piece should be square, with the length and width being exactly the same dimensions.

Finally, cut your two "E" pieces to 590mm long by 378mm wide. These are your bins dividers, giving your bin a total of four compartments to organise various different sizes and types of timbers.

The Build

First off, make sure you are working on a suitable hard flat surface, otherwise your finished piece may not be square when constructed. Once ready, we’ll tackle attaching the three "D" panels to the base panel "C". You may need some assistance from another person to tackle this first stage so grab and extra pair of hands!

The easiest way to attach the panels is to firstly measure exactly halfway along the length of the base panel (C) and draw a pencil line marking the centre. Then along the pencil line, mark two holes at 50mm from either edge and drill two pilot holes right through the base panel.

Now, with the "C" panel sat upright on its edge (being held by your friend), marry it up to one of your "D" panels to create a T-shaped formation and screw your base panel "C" into the edge of the centre divider panel "D" with two 1" wood screws. Now do exactly the same with the remaining two "D" pieces. Drill pilot holes at the ends of the "C" panel and then screw your remaining two "D" side panels to the base, to form a W shape.

Next, carefully turn your constructed frame to the correct upright position and marry up your back panel "B" to your frame so that it touches the rear edges of both the three "E" panels and the base "C" panel. With your helper holding them in place, drill pilot holes along the four touching edges and then screw the back plate to your frame using 1" wood screws through the pilot holes. Once done, your frame should be sturdy and solid and your helper can now go take a break!

We’re close to finishing but firstly, we need to get your divider panels (E) ready. With a tape measure, mark 50mm from the end of the long edge at both ends on just one side of both panels. These marks will tell us approximately how far down our divider panels we want to attach our L-brackets which need to be attached now.

So, once you have your two marks in place on both "E" panels, place an L-bracket up to the edge and mark the two holes with a pencil. Now lightly drill with minimal pressure to make two shallow pilot holes but do not drill all the way through the surface of the sheet. Screw your L-brackets onto your "E" panels at both ends and leave to one side.

Now return to your constructed frame and measure exactly halfway from the back edge of the centre and a side  "E" panels touching the back "B" panel and draw vertical lines from top to bottom with a straight edge such as a spirit level. Do this on all the internal sides. These marks will tell us where we wish to place our interior divider "E" panels so that we can align them and screw them in place using our recently attached L-brackets.

As the above suggests, slide your interior "E" dividers inside the constructed frame, then firstly screw them to the centre "D" panel with the L-rackets. Once in place, then hold them square to the outer "D" panels using your pencil marks nice and steady. Then screw the outer "D" panels to the interior divider "E" panels by drilling pilot holes and 1" wood screws.

By now, your timber bin is really starting to take shape and there’s just a couple of stages to go and that is to attach the front "A" panel. Simply lay your constructed frame on its back, place the "A" panel onto top of the front opening, drill pilot holes along the bottom edge, the two side edges and the centre line and attach with 1" wood screws.

Your bin frame in now constructed! All that’s left to do to make it portable is to attach the casters. Simply lay the bin on its back, hold each caster up to the corner edges of the base, mark the holes with a pencil, drill pilot holes appropriately and then screw to the base with your 1" wood screws.

That’s it, you’re done! Return your timber bin to its upright position and admire your handy work.

Finishing

If you want to give your timber bin the finishing touch, give it a light sand with a thin coarse sandpaper along the cut edges to remove any splinters and then you can either stain it with some good quality wood varnish or paint it with hard wearing exterior wood paint.

Now you have a suitable place to store all those timber cut offs that were cluttering up your tool shed. Happy organising!
